EchoPanel® Meridian

EchoPanel® Meridian

Lead Time: 2-4 Weeks

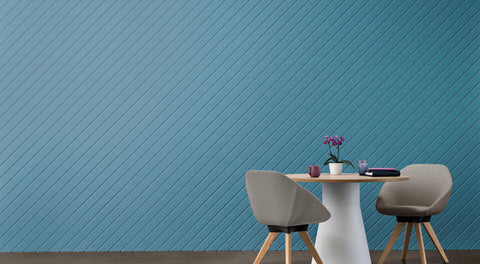

EchoPanel® Meridian acoustic panels feature a precision cut v-groove linework at a 45 degree angle and come in either 12mm or 24mm thicknesses to suit the acoustic requirements of your project.

Composition: 100% PET (80% post-consumer recycled)

Fire Test Results:

• AS 1530.3
• BS EN 13501.1: Classification B - s1, d0
• ISO 9705: Group 1
• ASTM E84 Unadhered: Class 1 or A
• GB 8624 B1
• BS EN 45545-2 + A1 Annex C: CIT: 0.05

Sound Absorption Test Methods:

• AS ISO 354: 2006 (R2016)
• AS ISO 11654: 2002 (2016)
• ASTM C423 - 17

Weighted Alpha Coefficient (αw):

• Direct fix: 0.30 (MH)
• 20mm air gap: 0.45 (MH)
• 50mm air gap: 0.60 (MH)

Sound Absorption Average (SAA):

• Direct fix: 0.43
• 20mm air gap: 0.61
• 50mm air gap: 0.75

Noise Reduction Coefficient (NRC):

• Direct fix: 0.45
• 20mm air gap: 0.60
• 50mm air gap: 0.75

Sound Absorption Class:

• D (Direct fix)
• D (20mm air gap)
• C (50mm air gap)


Dimensions:

• Length: 2750mm (+/-2 mm)
• Width: 1100mm (+/- 2mm)
• Thickness: 12mm (+/- 7%)
• Also available in 24mm (+/-7%), specifications will differ.

Certifications:

• Global GreenTag™ GreenRATE Level A
• Carbon Neutral
• Environmental Product Declaration
• Low VOC Emissions
